Bike Rack 009

This product is no longer available.

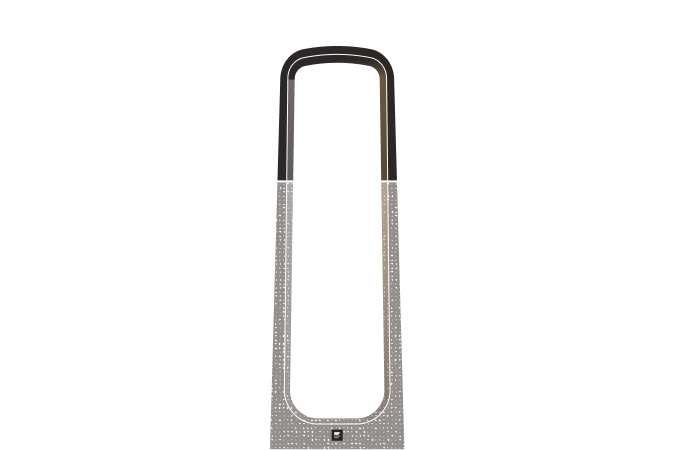

A city that encourages alternative mobility demonstrates this in the quality of its public infrastructure. This bike rack is an example, not just thanks to its function and durability, but also its manufacturing quality, its hidden anchoring, stylized shape, and vulcanized rubber to protect bikes from being scratched. BKT street furniture was founded by urban cyclists. For this reason, the CP-009 is a piece we designed especially for users like ourselves.

Descarga de recursos

PDF Technical file:
CAD Technical drawing:

Specifications

Color	Cast Aluminum or Black
Type	Capacity 2 bikes or Detachable
Finishes	natural aluminum
Dimensions	90 cm x 30 cm x 12 cm
Manufacturing	Cast aluminum and vulcanized rubber
Author	Industrial design No. 52583 In compliance with the provisions of article 409 of the Federal Law for the Protection of Industrial Property, it is stated and made public knowledge that the product and designs reproduced below are protected before the Mexican Institute of the Industrial Property with registration number 52583 INDUSTRIAL PARKING MODEL FOR BICYCLES, whose owner is RODRIGO VÁZQUEZ ORTEGA; rights that are in force and having all their legal effects.

Suggested alternatives:

Lane defender 001

Seat 009

Materials

Cast Aluminum

The aluminum structures are made from AlMg3 material, suitable for outdoor use. An stainless steel granule is applied onto the surface of the cast aluminum through blowing, limiting the occurrence of corrosion.

If the customer wants to prevent oxidation, it is advisable to apply a powder coating layer to the surface.

Stainless Steel

By contrast, this material withstands extreme conditions such as high humidity or salinity levels in the atmosphere. Its natural appearance also gives it its own aesthetic virtue.

Carbon Steel

The primary material used for manufacturing most product components is Class 11373 steel (S235JR) or higher quality. Tolerances adhere to ISO 2768-1 standard 'm', and imperfection quality complies with EN 25817 standard 'C'.

Metal Finishes
All our products undergo a series of processes tailored to the material and usage type, aiming to provide the highest quality and durability possible. The combination of these processes represents a unique art perfected over years of experience, made possible only through the right technology and raw materials.

Wood

Plywood

We use treated plywood to protect wood sheets from their natural decomposition, insects, humidity, heat, and other elements. This allows us to guarantee the material for 4 years with minimal maintenance.

Tropical Wood

This type of timber is, by nature, more weather resistant. We mainly use Tropical Wood due to its high resistance to fungi, mold, humidity and also due to its color range.

Glass

Laminated, Tempered, Confortek

For overhead use, 9mm glass with 4mm safety solar film model N1040 SR PS4, medium smoke color, blocks 99% of UV rays, total sunlight reflected 16%, solar rays absorbed 48%, solar energy reflected 49%, visible light transmitted 40%, heat reduction 48%, glare and sunlight reduction 56%, tensile strength 32,000, elongation at break 100%, break strength 2720.

Sustainability

In line with global sustainability efforts, the year 2020 at BKT street furniture marked the beginning of a commitment to sustainability, integrating this component into our vision as an integral element of our practice. We aim to comprehend the impacts our products have throughout their life cycle and understand how our organization influences or is influenced by sustainable development expectations.

Check our Report

In 2019, BKT street furniture measured its environmental impact using the Greenhouse Gas Protocol standards from WRI and WBCSD, demonstrating our commitment to sustainability.
